Gyro-mixers

HS-5 Automatic mixer

The perfect solution for fast and homogeneous mixing of paint and similar materials. This unit automatically clamps the product can adjusting the clamping force and the mixing speed to the inserted can size.

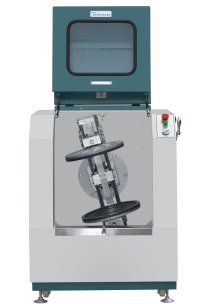

HS-6 Manual mixer

This gyroscopic mixer is the perfect solution for economic mixing of paint and similar materials. The manual clamping mechanism is easy to operate and maintain.

Operator's safety is granted by the most strict design and material specifications. Safety is always our primary concern in designing and producing all our equipments.

HS-5 Features

• Fully automatic gyroscopic mixer
• Unique alternate mixing direction
• Automatic can clamping mechanism
• Can proportional mixing speed (100 - 150 RPM) and clamping force
• Adjustable mixing time from 1 to 10 minutes
• The lower can tray can be extracted for easy can loading and unloading
• High contrast LCD display
• Safety lock on the access door

HS-6 Features

• Entry level gyroscopic mixer
• Manual can clamping mechanism
• Mixing speed of 130 RPM
• Adjustable mixing time from 0.5 to 15 minutes
• Access door with shock-absorbers for easy opening and closing
• Safety lock on the access door

Options

• 110 V 60 Hz power settings
• Custom body colors. Standard colors are RAL-6000 and RAL-9002 (reference only)

Can handling

• Maximum load 35 Kg (77 lb.)
• Maximum can height 420 mm
• Minimum can height 60 mm
• Maximum can diameter 330 mm

Power and electric specs.

• Single phase 220 V 50 Hz ± 10%
• Max. power consumption 750 W
• Working temperature from 10° to 40°
• Relative humidity from 5% to 85% (not condensing)

Dimensions and shipping (HS-5)

• Size (H, W, D) 1040 x 800 x 770 mm
• Weight 175 Kg (386 lb.)
• Wood crate standard packaging
• Shipping size (H, W, D) 1180 x 900 x 810 mm
• Shipping weight 212 Kg (467 lb.)
• 20' Container can contain up to 28 units (56 units in 40')

Dimensions and shipping (HS-6)

• Size (H, W, D) 1060 (1650 with open door) x 850 x 810 mm
• Weight 197 Kg (434 lb.)
• Wood crate standard packaging
• Shipping size (H, W, D) 1130 x 870 x 900 mm
• Shipping weight 235 Kg (518 lb.)
• 20' Container can contain up to 24 units (52 units in 40')
